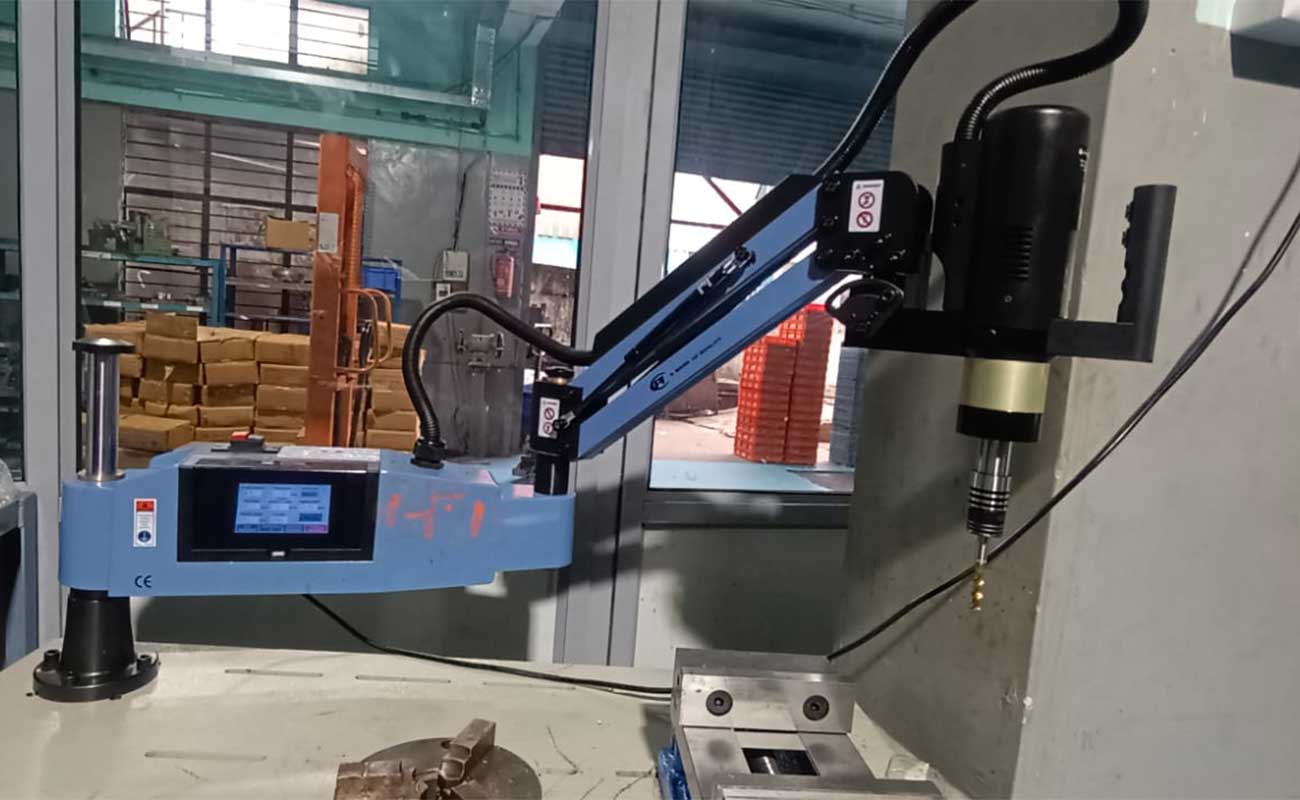

Flexible Arm Tapping Machine


Flexible Arm Tapping Machines are specialized tools designed for tapping operations in various manufacturing and assembly environments. These machines are characterized by their flexible arm, allowing operators to position the tapping head precisely over the workpiece, ensuring accurate and efficient tapping. They are commonly used in applications where repeated tapping of holes is required.

enquire-now whatsapp-now

Advantages

  • Precision : The flexible arm allows for accurate positioning, ensuring that threads are tapped precisely in the correct location.
  • Versatility : Capable of tapping various materials and accommodating different tap sizes, making it suitable for a wide range of applications.
  • Reduced Operator Fatigue : The flexible arm design reduces the need for strenuous manual positioning, allowing for easier operation.

Applications

  • Manufacturing : Commonly used in the production of components requiring precise threading, such as automotive parts, machinery, and appliances.
  • Assembly Lines : Employed in assembly operations where rapid and accurate tapping of multiple workpieces is required.
  • Maintenance and Repair : Useful in repair shops for creating or repairing threaded holes in various components.
demo-img
Flexible Arm Tapping Machine
demo-img

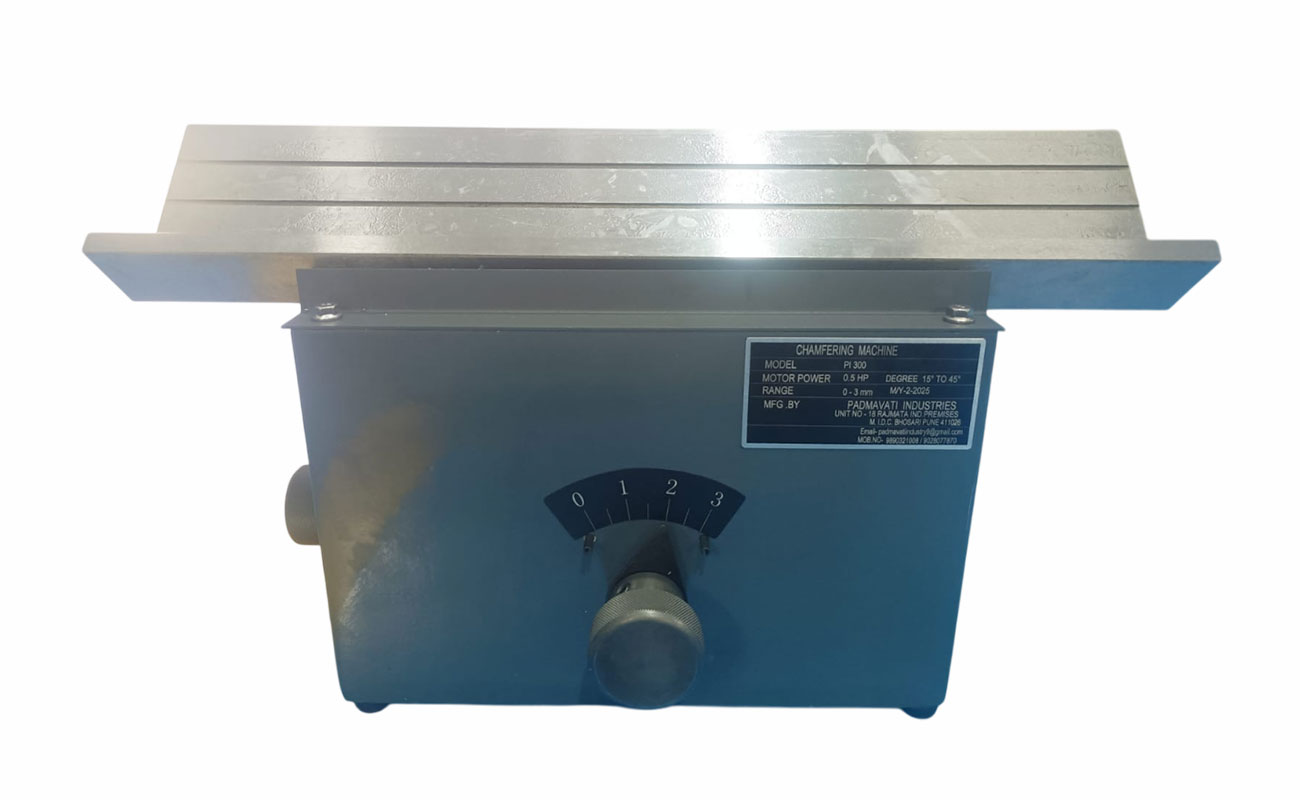

Chamfering Machine
BASIC CONFIGURATION KP-316US KP-630US KP-636US KP-1248US
CUSTOMIZED YES YES YES YES
POWER TYPES THE AC POWER THE AC POWER THE AC POWER THE AC POWER
RATED POWER 600W 1200W 1500W 2000W
SUPPLY VOLTAGE 220V 220V 220V 220V
SPINDLE RATED SPEED 0 TO 312 R / MIN 0 TO 200 R / MIN 0 TO 156 R / MIN 0 TO 100 R / MIN
BEARING SCOPE OF THREAD M3 TO M16 M6 TO M30 M6 TO M36 M12 TO M48
HORIZONTAL 1100 1200 1300 1300
VERTICAL 400 ADJUSTABLE 400 ADJUSTABLE 400 ADJUSTABLE 400 ADJUSTABLE
STANDARD ACCESSORIES TAPPING ARM - ONE SET TAPPING ARM - ONE SET TAPPING ARM - ONE SET TAPPING ARM - ONE SET
SERVO MOTOR AND REDUCER - ONE SET SERVO MOTOR AND REDUCER - ONE SET SERVO MOTOR AND REDUCER - ONE SET SERVO MOTOR AND REDUCER - ONE SET
TAP HOLDER TAP HOLDER TAP HOLDER TAP HOLDER
